E clip fastening system

Related presentations

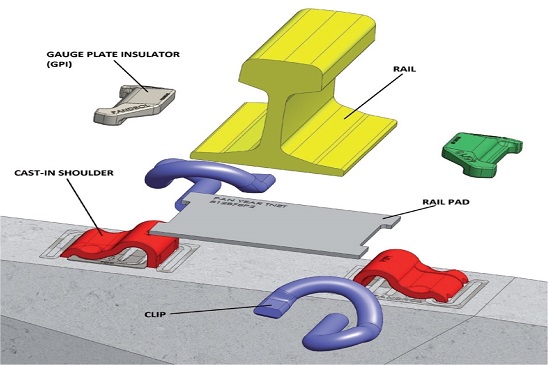

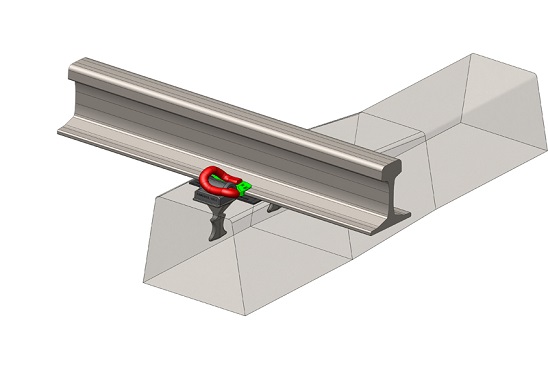

The elastic clip fastening system is made up of elastic clip, insulator, e clip type baseplate or shoulder and a rail pad.

The elastic fastening system can be supplied in a complete assembling, one complete consists the following items:

2 elastic rail clip + 2 insulator +2 shoulder (1 baseplate) + 1 rail pad

More information about the item:

Elastic rail clip:

We produce various elastic rail clip from diameter 12mm to 20mm.  With the strict dimensional control as well as the use of high quality spring steels\, we ensure that the elastic rail clip supplied by us are within the specified ranges .

There’re different types of elastic rail clip we produce:

Elastic clip, e1609, e1809, e1817, e2005, e2055, e2007, e2009, e2091 etc

PR clip, PR309, PR401, PR601A etc

Vossloh type tension clamp: SKL1, SKL3, SKL12, SKL14, this vossloh tension clamp is used together with the screw spike

Gauge lock clip, GL1419

Deenik clip (Grampo Deenik): produced in both round and square bar

Nabla clip: the Nabla clip is used in combination with the insulator and bolt, detailed information see Nabla fastening system introduction.



Insulator:

Also called GPI, gauge plate insulator, it is produced with reinforced nylon 66 and 30% glass fiber.  The rail insulator is used for adjusting rail gauge and insulating rails from the elastic rail clip.  It provides electrical insulation and protect the elastic rail clip from abrasion by direct contact with the rail

Besides the rail insulator for the elastic rail fastening system, we also supply a different insulator which also called guide plate for the vossloh fastening system and Nabla fastening system.



Shoulder:

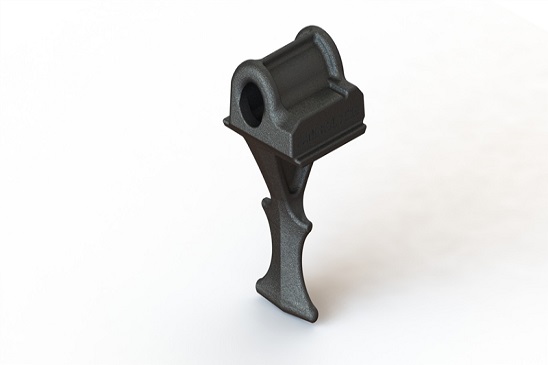

There’re different types of shoulder used with the elastic rail clip, fast clip and deenik clip, this type is made of cast iron and normally we call it cast iron shoulder, it is pressed in concrete sleepers.

There’s another type of shoulder which is named weld on shoulder, the weld on shoulder is welded on flat steel plate and is designed for use with the elastic clip, it is produced by hot forging.

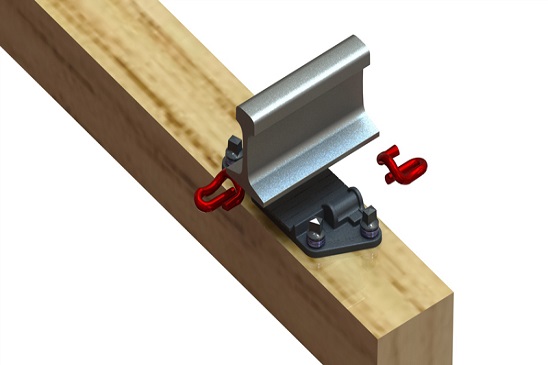

E Clip type baseplate:



Rail pad:

The rail pad is used to avoid impact, increase the frication and reduce vibration.  The material normally used for production of rail pad is rubber or HDPE, so we also call it rubber pad.

We also have rail pad for the vossloh fastening system and Nabla fastening system, some type we supplied are ZW686, ZW687, ZW700

We also have crane rail pad, the most popular one is the Gantrex crane rail pad, which is first designed by Gantrex.  We have steel reinforced crane rail pad and normal ones, types we mostly supplied are MK2 and MK6.
