Bosheng offers a wide range of rail fastening accessories for different types of rail fastening system, both rigid and elastic, for all types of rails. The rail fastening accessories are used depending on the type of the railway line. In our offer you will find solution for any type of railway structure.
The rail fastening accessories we provide include:
Eastic rail clip/Vossloh SKL tension clamp/Gauge lock clip/Nabla clip/Fast clip

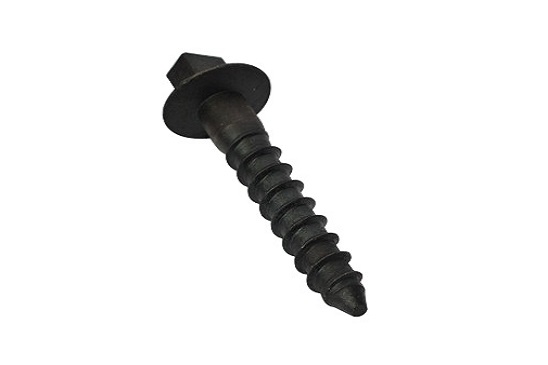

Sleeper screw/Screw spike

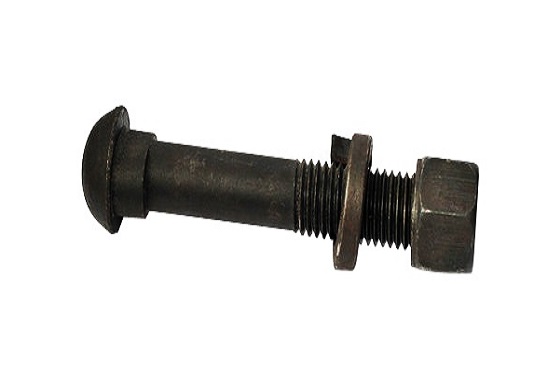

Rail bolt/Track bolt/HS clip bolt
Clamping clip/KPO clamp/MTH clip

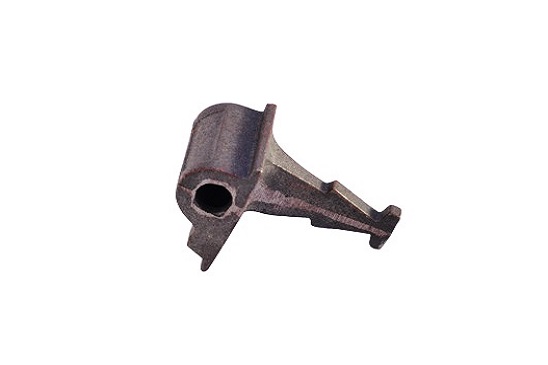

E clip shoulder/Cast iron Shoulder/Weld on shoulder
We can provide design service of the rail fastening accessories for your railway construction.
Please contact us for details.

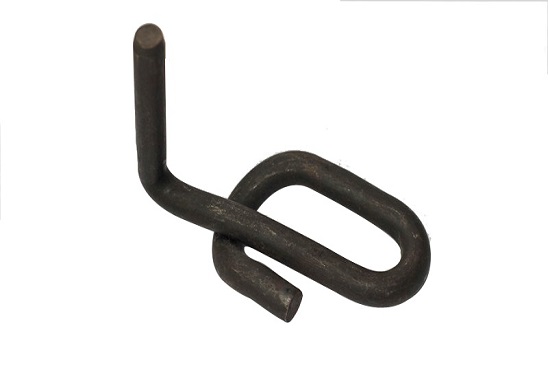

The deenik fastening system is widely used in South America. Rail deenik clip is produced with round or square steel bar, material is 60Si2MnA, 55Si7 or equivalent. The deenik clip offers an increased elasticity and fatigue resistance, it has a relatively longer lifespan.
The Nabla fastening system is widely used in France and Africa railways. It is compliant with EN13481-5 standard.The Nabla fastening system consists the following items: Nabla blade: The Nabla blade is made up of alloy spring steel according to NF F50-015 standard Insulator: This insulator is specially designed for the Nabla blade, we also call it support pad High strength bolt with nut and washer
The elastic clip fastening system is made up of elastic clip, insulator, e clip type baseplate or shoulder and a rail pad. The elastic fastening system can be supplied in a complete assembling, one complete consists the following items: 2 elastic rail clip + 2 insulator +2 shoulder (1 baseplate) + 1 rail pad More information about the item: Elastic rail clip: We produce various elastic rail clip from diameter 12mm to 20mm. With the strict dimensional control as well as the use of high quality spring steels\, we ensure that the elastic rail clip supplied by us are within the specified ranges . There’re different types of elastic rail clip we produce: Elastic clip, e1609, e1809, e1817, e2005, e2055, e2007, e2009, e2091 etc PR clip, PR309, PR401, PR601A etc Vossloh type tension clamp: SKL1, SKL3, SKL12, SKL14, this vossloh tension clamp is used together with the screw spike Gauge lock clip, GL1419 Deenik clip (Grampo Deenik): produced in both round and square bar Nabla clip: the Nab...
